How to manage Angular state in your components

Updated Dec 3, 2020

Thanks @AlexOkrushko and @Nartc1410 for the great feedback.

Managing the state of your Angular application has always been a challenge.

In this tutorial, I will explain how to manage your component's state with @ngrx/component-store. You will be able to do it in a more organized way and minimizing bugs and UI inconsistencies.

Table of content

Prerequisites

  1. Basic knowledge of Angular
  2. Basic knowledge of RXJS
  3. angular-cli installed or Stackblitz account

What are we going to build?

An application to manage car parking and will have the following parts:

  1. store.service: Where we will manage all our state and all the logic of the UI
  2. parking-lot.service: To communicate with the backend (for the demo)
  3. app.component: Parent component. We consume the state and add cars to the parking lot
  4. car-list.component: To show the list of parked cars

If you wish, you can jump to source code, without obligation 🤓 or directly to the tutorial.

What is the "state"?

It is the representation of your UI using an object, and we could change it in different ways, for example:

Example:

state = {
    cars: [],
    loading: true,
    error: '',
}
  1. List of cars in the parking lot: cars: []
  2. To change the UI of our app while doing an operation that takes time to resolve, for example, a network request: loading: true
  3. To show errors that may occur during the execution of the application: error: ''

Almost all components have a state. We handle them indirectly by using properties and changing them during their life cycle.

In short a state is:

  1. It is an object that represents the view of your component
  2. It is not the data that comes from the server, in fact, this may be part of it
  3. It can have as many levels as you need
  4. It is immutable. When you need to update a property, you don’t change it directly but create a new object with the modified property.

Not all Angular apps need NgRx or NGSX

Most Angular applications do not need a full-blown state management system. It is best to manage the state at the component level before implementing a more complex app-level solution like NgRx or NGSX.

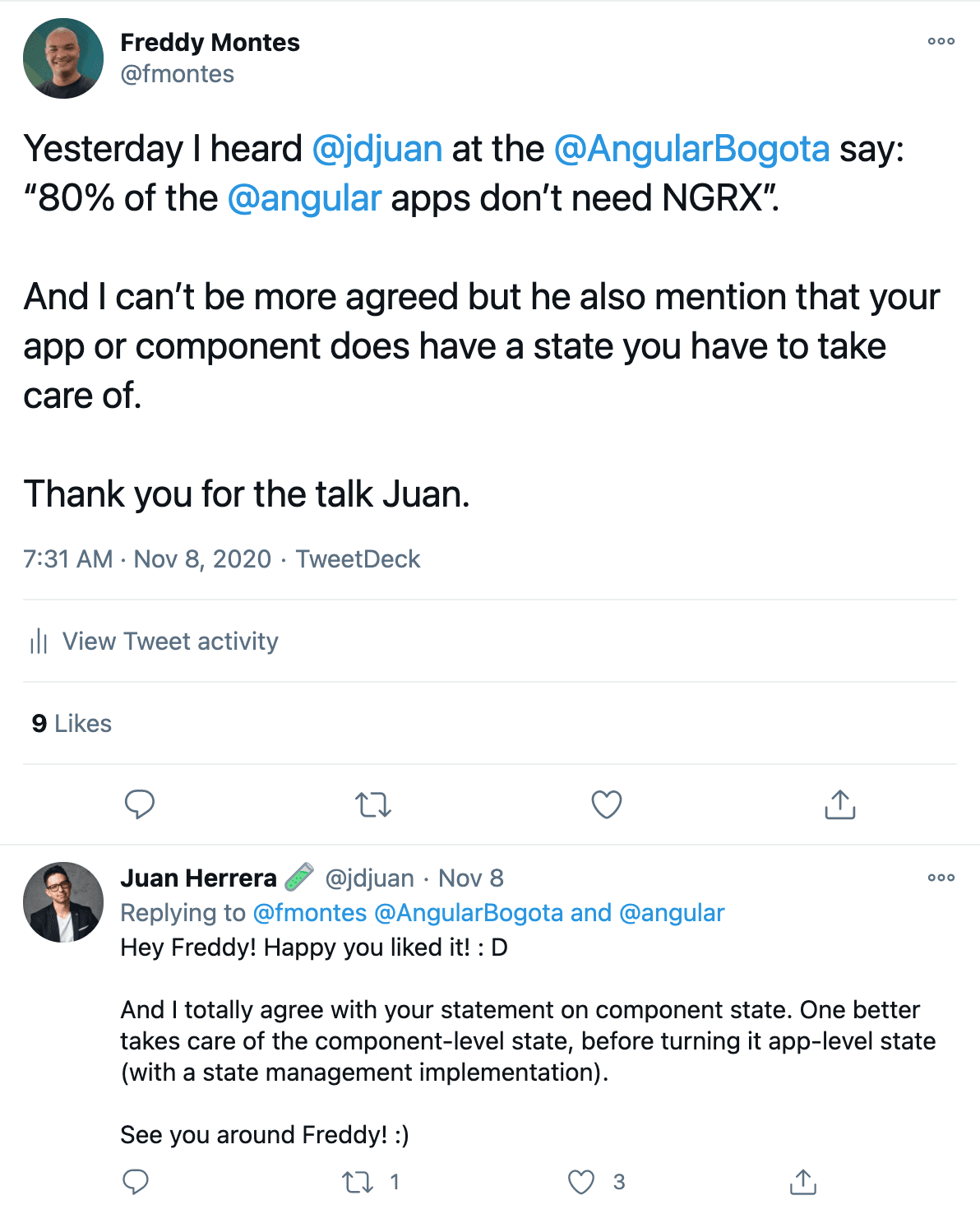

Not all Angular apps need NgRx or NGSX

Tweet Link

The problem

If you have a smart component with several child components, you probably have many properties in your parent component that you need to pass to the child components.

For sure, your child’s components emit events that will change the properties in its parent.

Keep all these changes in order and under control can become a tedious task because the properties change in many places that can be hard to track, especially in async tasks.

The solution: @ngrx/component-store

The same NgRx team developed @ngrx/component-store. A service based on ReplaySubject can extend to a service and be consumed by a component.

It allows you to keep all the business logic outside the component (or components) and only subscribes to the state and updates the UI when it changes.

The service you create by extending ComponentStore is unique to a particular component and its children and should be injected directly into the component’s providers property.

When to use an @ngrx/store or @ngrx/component-store?

In your application, you can use both. Both libraries complement each other.

  1. If the state needs to persist when you change the URL, that state goes in your global state
  2. If the state needs to be clean up when you change the URL that goes in your component store

More information in Comparison of ComponentStore and Store.

My recommendation

If you don't have any state management in your app and want to start with one, I recommend starting with @ngrx/component-store and evaluating if you need something more complicated in the future.

In this way, you can start implementing state management in parts of your app and scale efficiently.

@ngrx/component-store concepts

It has only three very simple concepts that you have to learn:

  1. Selectors: You select and subscribe to the state, either all or parts of it
  2. Updater: To update the state. It can be parts or in whole
  3. Effects: It is also to update the state but do some other necessary task beforehand. For example, an HTTP request to an API

Getting started

The application will have a UI with three sections:

  1. Form to add the cart
  2. Table with parked cars
  3. Error messages

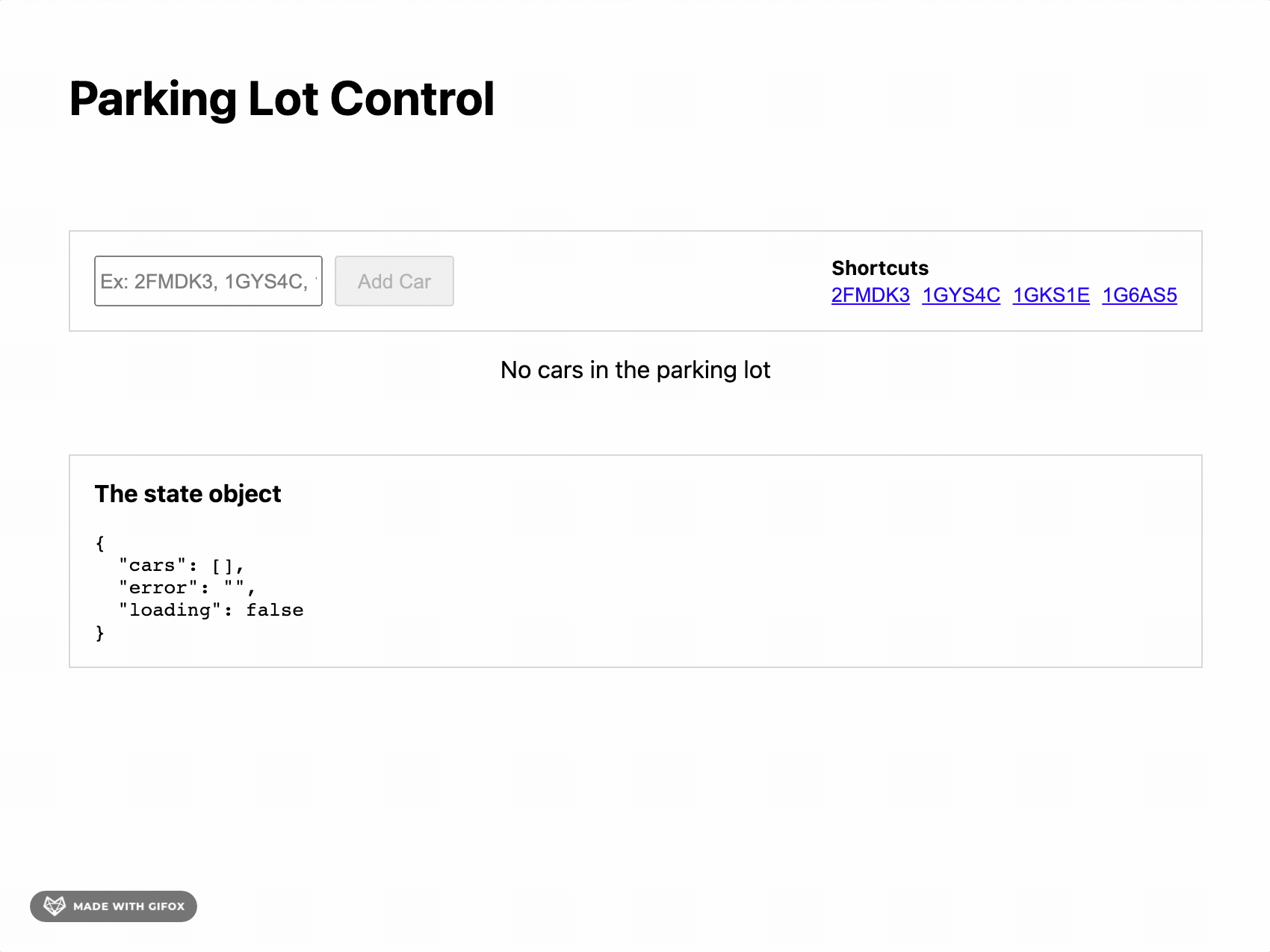

Parking lot app demo

Initializing the application

The first step is to create a new Angular application. With angular-cli. Open a terminal, run the command:

ng new parking-lot-app

We start the application that we created:

cd parking-lot-app
ng serve

Then point your browser to [http://localhost:4200/](http://localhost: 4200/), and you will see your Angular application running with all the information by default.

Creating utilities

The first thing you are going to create is the "Car" interface. You run the command:

ng g interface models/car

Open the file app/models/car.ts and add:

export interface Car {
    plate: string
    brand: string
    model: string
    color: string
}

The above is the very basic model of the car.

Then you create a service that will communicate with the "backend" (only for the demo). You run the command:

ng g service services/parking-lot

Open the file app/services/parking-lot.service.ts and add:

import { Injectable } from '@angular/core'
import { Observable, of, throwError } from 'rxjs'
import { delay } from 'rxjs/operators'
import { Car } from '../models/car'

const data: Car[] = [
    {
        plate: '2FMDK3',
        brand: 'Volvo',
        model: '960',
        color: 'Violet',
    },
    {
        plate: '1GYS4C',
        brand: 'Saab',
        model: '9-3',
        color: 'Purple',
    },
    {
        plate: '1GKS1E',
        brand: 'Ford',
        model: 'Ranger',
        color: 'Indigo',
    },
    {
        plate: '1G6AS5',
        brand: 'Volkswagen',
        model: 'Golf',
        color: 'Aquamarine',
    },
]

const FAKE_DELAY = 600

@Injectable({
    providedIn: 'root',
})
export class ParkingLotService {
    private cars: Car[] = []

    constructor() {}

    add(plate: string): Observable<Car> {
        try {
            const existingCar = this.cars.find((eCar: Car) => eCar.plate === plate)

            if (existingCar) {
                throw `This car with plate ${plate} is already parked`
            }

            const car = this.getCarByPlate(plate)
            this.cars = [...this.cars, car]

            return of(car).pipe(delay(FAKE_DELAY))
        } catch (error) {
            return throwError(error)
        }
    }

    private getCarByPlate(plate: string): Car {
        const car = data.find((item: Car) => item.plate === plate)

        if (car) {
            return car
        }

        throw `The car with plate ${plate} is not register`
    }
}

data: A list of the cars registered in our system. It will act as your car database for the demo.

FAKE_DELAY: To simulate a small delay to the API request using thedelay operator from rxjs

Methods:

add: which receives the vehicle license plate and if it exists adds it to the list of parked cars and if it does not return an error.

getCarByPlate: this private method only searches our "database" (data) for the car using the plate, and if it does not exist, it throws an error.

Properties:

car: To keep track of the cars parked in the "backend".

Defining the state

To define the state, let’s see the application requirements:

  1. User will add cars by license plate (a request to an API)
  2. You must indicate to the user the errors:
    • The vehicle plate does not exist in the API
    • The vehicle is already parked
  3. You must show indicators in the UI when a request is happening
    • Loading: change the button text while the request happening
    • Disable: the button and the text field while the request happening
    • Show the error when it occurs

Based on these requirements, the state of your UI would be as follows:

interface State {
    cars: Car[]
    loading: boolean
    error: string
}
  1. A list of parked cars
  2. A boolean for when the app is making a request
  3. A string for error messages

Install @ngrx/component-store

To add @ngrx/component-store to your app use npm:

npm install @ngrx/component-store --save

Creating the store service

Create the file: app/store.service.ts and add the following code:

import { Injectable } from '@angular/core'
import { ComponentStore } from '@ngrx/component-store'
import { Car } from './models/car'

// The state model
interface ParkingState {
    cars: Car[] // render the table with cars
    error: string // show the error when try to add cars
    loading: boolean // used to enable/disable elements in the UI while fetching data
}

@Injectable()
export class StoreService extends ComponentStore<ParkingState> {
    constructor() {
        super({
            cars: [],
            error: '',
            loading: false,
        })
    }
}

This code is the base of your StoreService:

  1. You imported Injectable (like any other service) and ComponentStore
  2. You created a ParkingState interface that defines the state of your component
  3. You created the StoreService class that extends from ComponentStore and pass the interface
  4. You initialized the UI state through the constructor makes the state immediately available to the ComponentStore consumers.

Now you are going to add the rest of the code, selects, updaters and effects. Your service code would be:

import { Injectable } from '@angular/core'

import { ComponentStore } from '@ngrx/component-store'
import { EMPTY, Observable } from 'rxjs'
import { catchError, concatMap, finalize, tap } from 'rxjs/operators'
import { Car } from './models/car'
import { ParkingLotService } from './services/parking-lot.service'

// The state model
interface ParkingState {
    cars: Car[] // render the table with cars
    error: string // show the error when try to add cars
    loading: boolean // used to enable/disable elements in the UI while fetching data
}

@Injectable()
export class StoreService extends ComponentStore<ParkingState> {
    constructor(private parkingLotService: ParkingLotService) {
        super({
            cars: [],
            error: '',
            loading: false,
        })
    }

    // SELECTORS
    readonly vm$: Observable<ParkingState> = this.select((state) => state)

    // UPDATERS
    readonly updateError = this.updater((state: ParkingState, error: string) => {
        return {
            ...state,
            error,
        }
    })

    readonly setLoading = this.updater((state: ParkingState, loading: boolean) => {
        return {
            ...state,
            loading,
        }
    })

    readonly updateCars = this.updater((state: ParkingState, car: Car) => {
        return {
            ...state,
            error: '',
            cars: [...state.cars, car],
        }
    })

    // EFFECTS
    readonly  = this.effect((plate$: Observable<string>) => {
        return plate$.pipe(
            concatMap((plate: string) => {
                this.setLoading(true)
                return this.parkingLotService.add(plate).pipe(
                    tap({
                        next: (car) => this.updateCars(car),
                        error: (e) => this.updateError(e),
                    }),
                    finalize(() => {
                        this.setLoading(false)
                    }),
                    catchError(() => EMPTY)
                )
            })
        )
    })
}

It’s quite a bit of code, so I will explain it to you in parts and start with the selectors.

Selectors

To create a selector, the select method is used as follows:

readonly vm$: Observable<ParkingState> = this.select(state => state);

The select method expects a function that receives the full state. With this state, we can return to the components what is needed; in this case, it returns the entire state.

In this app, you need a selector, but you can have more than one.

Updaters

To update the state, you will need three updaters:

  1. To add or remove the error message
  2. To update the loading
  3. To add cars to the parking lot

To create updaters, use the update method provided by the ComponentStore class.

The method receives a function with two parameters, the first is the current state, and the second is the payload the component sent to update the state. This method only has to return the new state.

Error y loading
readonly updateError = this.updater((state: ParkingState, error: string) => {
    return {
        ...state,
        error
    };
});

readonly setLoading = this.updater(
    (state: ParkingState, loading: boolean) => {
        return {
            ...state,
            loading
        };
    }
);

The updateError receives the error message and use the spread operator to combine with the old state and return the new state.

The setLoading works the same as the previous one but with the loading property.

Add cars to parking

This updater receives a car and just adds it to the cars array using the spread operator.

readonly updateCars = this.updater((state: ParkingState, car: Car) => {
    return {
        ...state,
        error: '',
        cars: [...state.cars, car],
    };
});

IMPORTANT: When you update the state, you don't mutate the object (changing some property directly) but return a new object always.

Effects

To add a car to the parking lot, you have to create an effect because you have to make a request to an API with the car’s license plate, and when it responds, the state is updated.

We use the effect method that receives a callback with the value that we pass as an Observable to create effects. Keep in mind that each new call of the effect would push the value into that Observable.

readonly addCarToParkingLot = this.effect((plate$: Observable<string>) => {
    return plate$.pipe(
        concatMap((plate: string) => {
            this.setLoading(true);
            return this.parkingLotService.add(plate).pipe(
                tap({
                    next: car => this.updateCars(car),
                    error: e => this.updateError(e)
                }),
                finalize(() => {
                    this.setLoading(false);
                }),
                catchError(() => EMPTY)
            );
        })
    );
});

In this code, you can see that the effect:

  1. Receive the car license plate as an Observable
  2. Update the state of loading
  3. Request the API to add the car to the parking lot using the ParkingLotService.
  4. When the request is successful, update the state again: remove the loading and add the cart to the state.
  5. If it fails: remove the loading and update the state with the error coming from the “backend”

Using concatMap so that if the effect gets called multiple times before the call ends, it will resolve all the calls. This RxJS operator will wait until the previous request completes to do the next one.

The tap operator to handle the case of success and error.

And the catchError to handle potential errors within the internal pipe.

Creating the <car-list> component

Run the following command to generate the component.

ng g component components/car-list

In the components/car-list.component.ts file, add the following code:

import { Component, Input } from '@angular/core'
import { Car } from '../../models/car'

@Component({
    selector: 'app-car-list',
    templateUrl: './car-list.component.html',
    styleUrls: ['./car-list.component.css'],
    providers: [],
})
export class CarListComponent {
    @Input() cars: Car[] = []

    constructor() {}
}

In the components/car-list.component.html file, add the following code:

<table *ngIf="cars.length; else noCars">
    <tr>
        <th>Plate</th>
        <th>Brand</th>
        <th>Model</th>
        <th>Color</th>
    </tr>
    <ng-template ngFor let-car [ngForOf]="cars" let-i="index">
        <tr>
            <td>{{car.plate}}</td>
            <td>{{car.brand}}</td>
            <td>{{car.model}}</td>
            <td>{{car.color}}</td>
        </tr>
    </ng-template>
</table>

<ng-template #noCars>
    <p>No cars in the parking lot</p>
</ng-template>

In the components/car-list.component.css we make the table looks fancy:

table {
    width: 100%;
    border-collapse: collapse;
}

td,
th {
    border: solid 1px lightgray;
    padding: 0.5rem;
    text-align: left;
    width: 25%;
}

th {
    border-bottom-width: 3px;
}

p {
    text-align: center;
}

Finally, make sure that the car-list component is added to the module.

Open the app/app.module.ts file, look into the declarations array, and if it is not there, you can add the CarListComponent class manually.

Adding the FormModule

As you are going to have a small form with [(ngModel)] in the app.component, you must add the FormModule to the app.module

Open the app/app.module.ts file and add theFormsModule to the imports array. The final code looks like this:

import { BrowserModule } from '@angular/platform-browser'
import { NgModule } from '@angular/core'

import { AppComponent } from './app.component'
import { CarListComponent } from './components/car-list/car-list.component'
import { FormsModule } from '@angular/forms'

@NgModule({
    declarations: [AppComponent, CarListComponent],
    imports: [BrowserModule, FormsModule],
    bootstrap: [AppComponent],
})
export class AppModule {}

Consuming the store service

You created the service specifically for the app.component and its children.

app/app.component.ts

Add replace all the code with:

import { Component } from '@angular/core'
import { StoreService } from './store.service'

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['./app.component.css'],
    providers: [StoreService],
})
export class AppComponent {
    plate = ''
    vm$ = this.store.vm$

    constructor(private store: StoreService) {}

    onSubmit($event: Event) {
        $event.preventDefault()
        this.store.addCarToParkingLot(this.plate)
    }

    addPlate($event: Event) {
        const target = $event.target as HTMLButtonElement

        if (target.nodeName === 'BUTTON') {
            this.plate = target.innerHTML
        }
    }
}

StoreService handles all the business logic, which results in a tiny component. Let’s see the code part by part:

Providers

providers: [StoreService]: You inject the service at the component level so that this instance only has this component and its children.

Properties

plate: For the form model, the user will enter the car plate to add to the parking lot.

vm$ It is the observable state from our StoreService and is updated every time the state changes. We will subscribe to this in the HTML in the next step.

Methods

constructor(private store: StoreService) {}: You inject the StoreService into the constructor, just like a regular service.

onSubmit(): You call it when the form is submitted, and the only thing it does is call the store method addCarToParkingLot (effect) with the car plate entered by the user in the form.

addPlate(): This method is not necessary, but for demo purposes, I added it to enter some plates by clicking on some buttons.

app/app.component.html

Add replace all the code with:

<header>
    <h1>Parking Lot Control</h1>
</header>

<ng-container *ngIf="vm$ | async as vm">
    <div class="messages">
        <p class="error" *ngIf="vm.error">{{vm.error}}</p>
    </div>

    <div class="box">
        <form (submit)="onSubmit($event)">
            <input
                type="text"
                [(ngModel)]="plate"
                [ngModelOptions]="{standalone: true}"
                placeholder="Ex: 2FMDK3, 1GYS4C, 1GKS1E,1G6AS5"
                [disabled]="vm.loading"
            />
            <button type="submit" [disabled]="vm.loading || !plate.length">
                <ng-container *ngIf="vm.loading; else NotLoading">
                    Loading...
                </ng-container>
                <ng-template #NotLoading>
                    Add Car
                </ng-template>
            </button>
        </form>
        <div class="shortcuts">
            <h5>Shortcuts</h5>
            <p (click)="addPlate($event)" class="examples">
                <button>2FMDK3</button>
                <button>1GYS4C</button>
                <button>1GKS1E</button>
                <button>1G6AS5</button>
            </p>
        </div>
    </div>

    <app-car-list [cars]="vm.cars"></app-car-list>
</ng-container>

<ng-container *ngIf="vm$ | async as vm">: The first thing is to obtain the ViewModel of the vm$ property that we created in the component class, we use async pipe to subscribe, and we make a static variable vm that the rest of our HTML will be able to use.

Error message

The error is a string, so we just have to show it in the HTML and using interpolation:

<p class="error" *ngIf="vm.error">{{vm.error}}</p>

Form

We create a form for the user to enter the car's plate that they want to add to the parking lot, and we bind the onSubmit event.

<form (submit)="onSubmit()">

It is a small form with a textfield for the user to enter the plate and a button to execute the add action.

<input>: Enable/disable based on the state's loading property.

<button>: It is enabled/disabled with the loading property of the state but also if the plate property of the component is empty (it prevents an empty string from being sent to the store service)

In the onSubmit method of the component, we call the effect with the plate number entered by the user, and this is where our ComponentStore service does everything.

app/app.component.css

We add some styles to make our app very good-looking:

h1 {
    margin-bottom: 0;
}

.box {
    border: solid 1px lightgrey;
    padding: 1rem;
    display: flex;
    justify-content: space-between;
    margin-bottom: 1rem;
}

.box p {
    margin: 0;
}

.box form {
    display: flex;
}

.box form input {
    margin-right: 0.5rem;
}

.box form button {
    width: 80px;
}

.messages {
    height: 2.4rem;
    margin: 1rem 0;
}

.messages p {
    border: solid 1px transparent;
    margin: 0;
    padding: 0.5rem;
}

.messages .error {
    background-color: lightyellow;
    border: solid 1px red;
    color: red;
    text-align: center;
}

.examples button {
    border: 0;
    background: none;
    color: blue;
    text-decoration: underline;
    cursor: pointer;
    padding: 0;
    margin: 0 0.5rem 0 0;
}

.examples button:last-child {
    margin: 0;
}

.shortcuts h5 {
    margin: 0;
}

.code {
    margin-top: 3rem;
    border: solid 1px lightgray;
    padding: 1rem;
}

.code h4 {
    margin: 0 0 1rem;
}

.code pre {
    margin: 0;
}

And in the global style file src/styles.css:

body {
    font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, Helvetica, Arial,
        sans-serif, 'Apple Color Emoji', 'Segoe UI Emoji', 'Segoe UI Symbol';
    margin: 3rem;
}

That's it

Go to your browser: https://localhost:4200 and see your app working.

Summary

  1. You created a service that communicates with the API: ParkingLotService
  2. You created a service that handles all the logic and state of the StoreService component that extends ComponentStore
  3. Your UI subscribes to the state of StoreService, and every time it changes, your UI is updated.

Using this approach, you will end up with a single “source of truth” for your UI, easy to use without having to change code in many places to update or improve.

Conclusion

As you could see, it is better to start managing the state at the component level before jumping to a complete architecture.

A state is simply an object representing how your interface looks like, and using @ngrx/component-store and its three basic concepts: select,update and effect, you can handle it in a simple, direct, and more painless way test.

I hope this tutorial has been beneficial for you, and if you have any questions, you can write to me on Twitter by @fmontes.

Copyright © 2024. Design and code by myself with Next.js. Fork it and create yours
