How I handoff designs to developers with Sketch y Zeplin

September 19, 2020

Delivering interface designs to developers is not an easy task, many designers try to create guidelines manually where they show font sizes, colors, components, space, margins etc … but this takes a lot of work and keeping it updated is a nightmare.

There are several applications that serve to do this work in a more orderly and efficient way: Invision, Avocado and Zeplin to name a few. In this post I will explain how I use Zeplin to handle this important task.

Table of content

Why Zeplin?

  1. Automatically generate styleguides
  2. You can organize your components in sections and groups
  3. Synchronize directly with Sketch through an official plugin
  4. Download assets, images in 1x, 2x and 3x also optimized svg
  5. Good CSS code with variables and relative units
  6. Webapp available
  7. Can be shared with the whole team
  8. Has a free version

Connecting Zeplin and Sketch

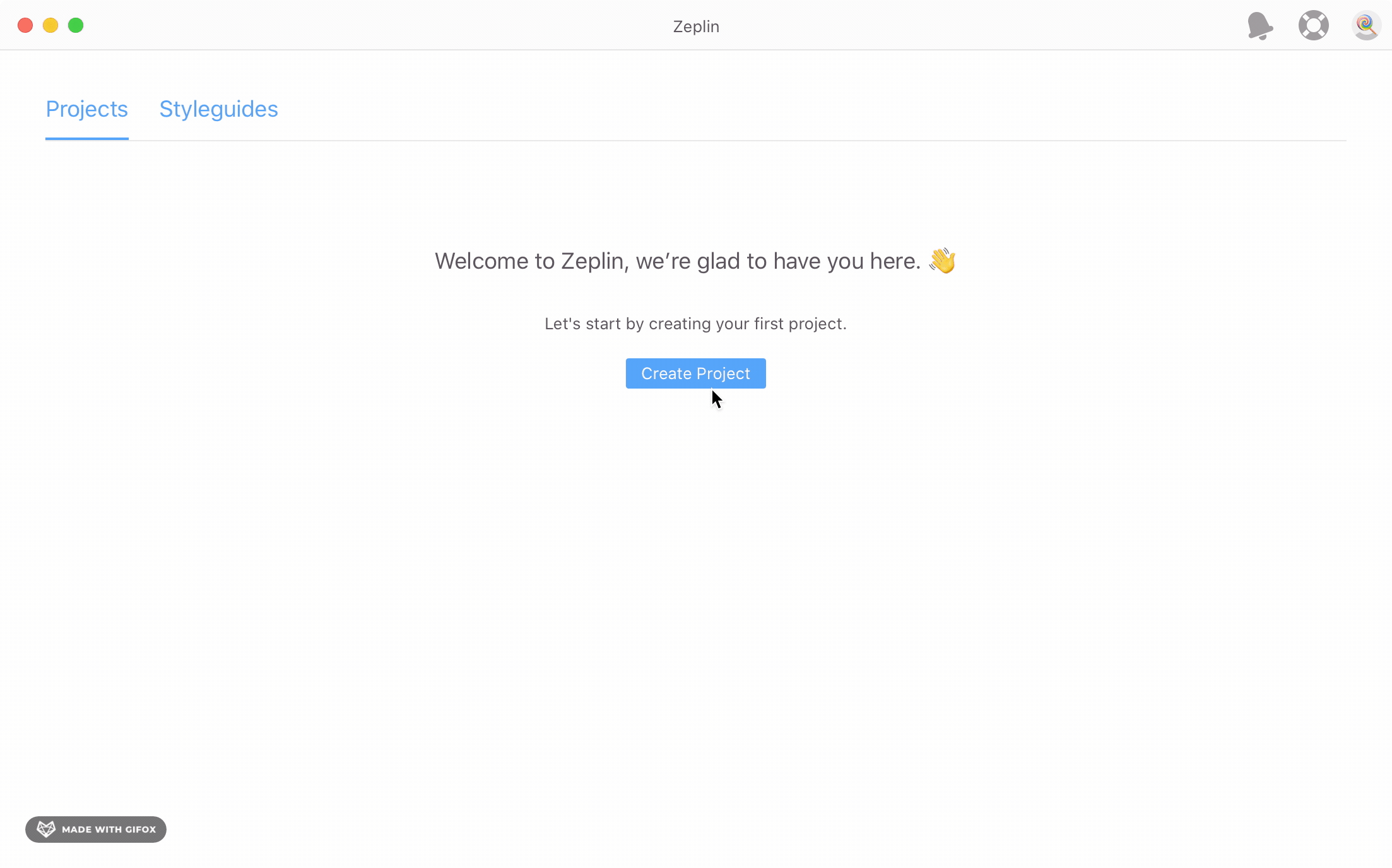

After you create your account in Zeplin the next step is to create a project.

Create a Zeplin Proyect

You can do it from the Mac or Windows app:

Create a Zeplin Proyect

Installing the Sketch plugin

Once you install Zeplin the Sketch plugin should install automatically but if you have any problems download the plugin and just click double click. Once you have done this you should have it available under the plugins menu in Sketch:

Installing the Sketch plugin

What do developers expect from the designer?

  1. Typeface: family, size, weight, space between characters and line spacing
  2. Spaces: margins, padding and distance between elements
  3. Colors
  4. Symbols or components
  5. Assets: images, photos etc

Zeplin gives you all this and also generates very good CSS code for this.

Five things that cannot be missing in your Sketch file

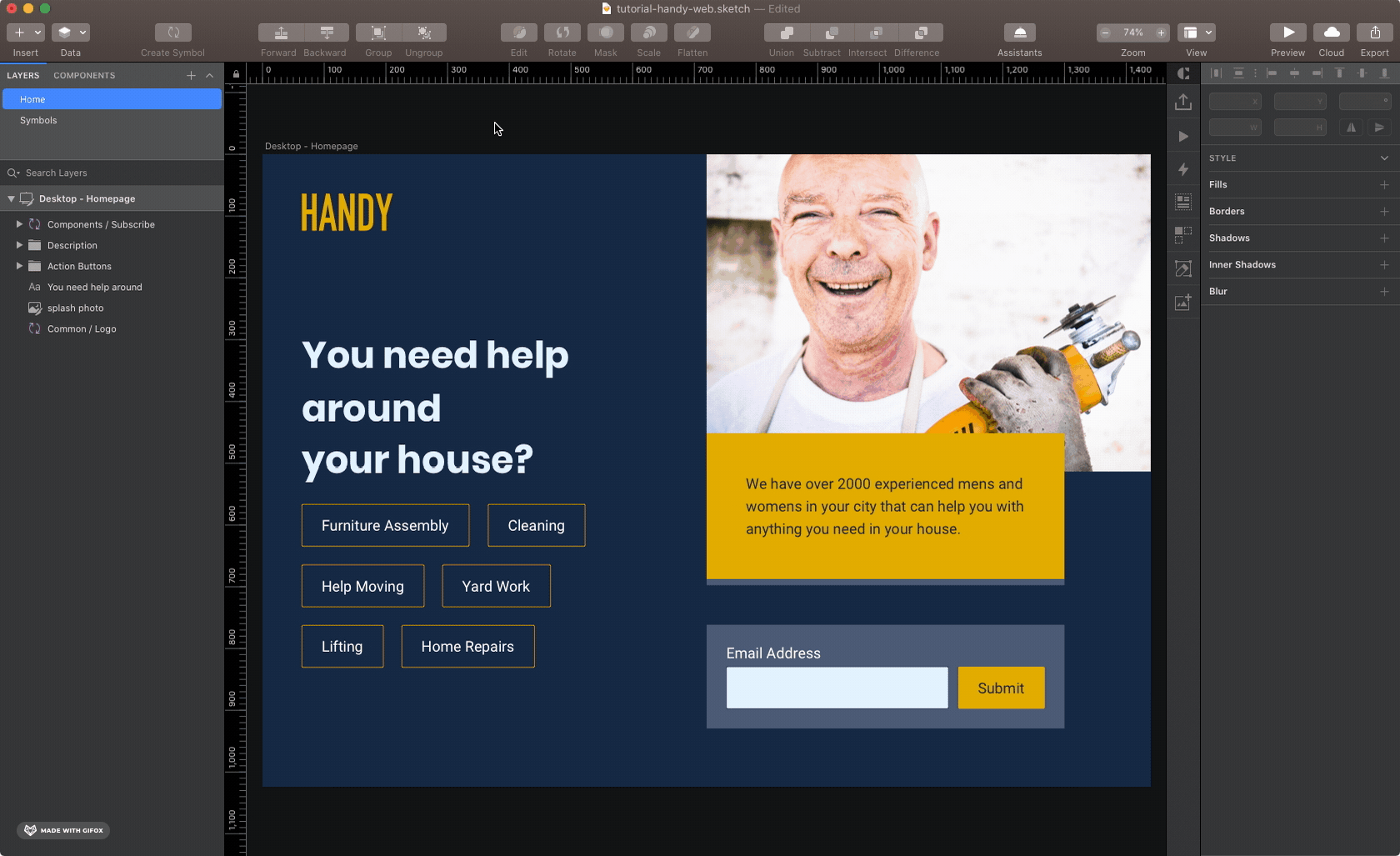

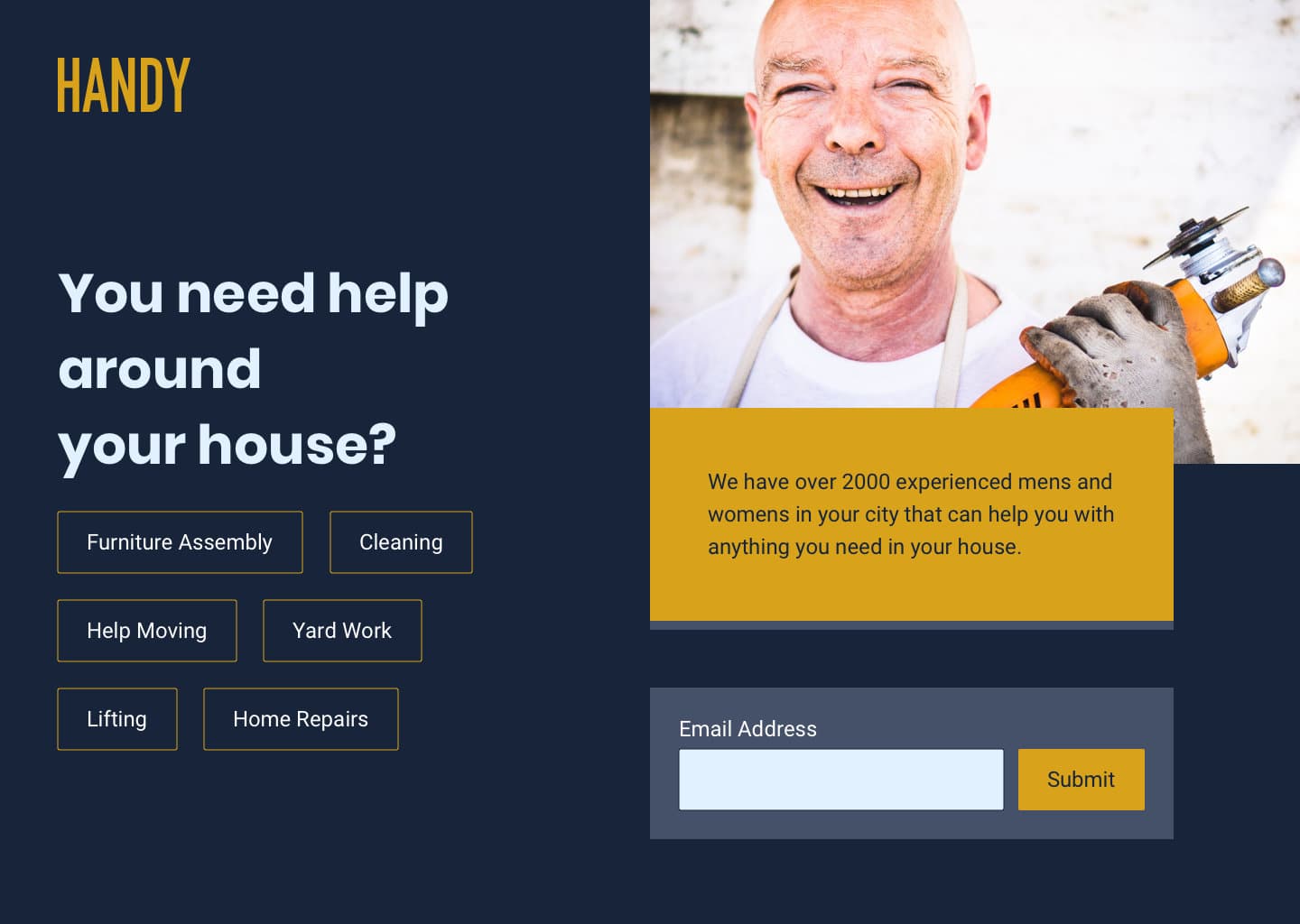

To demonstrate how to use Zeplin I made a small design in Sketch, you can download here.

I made a small design in **Sketch**

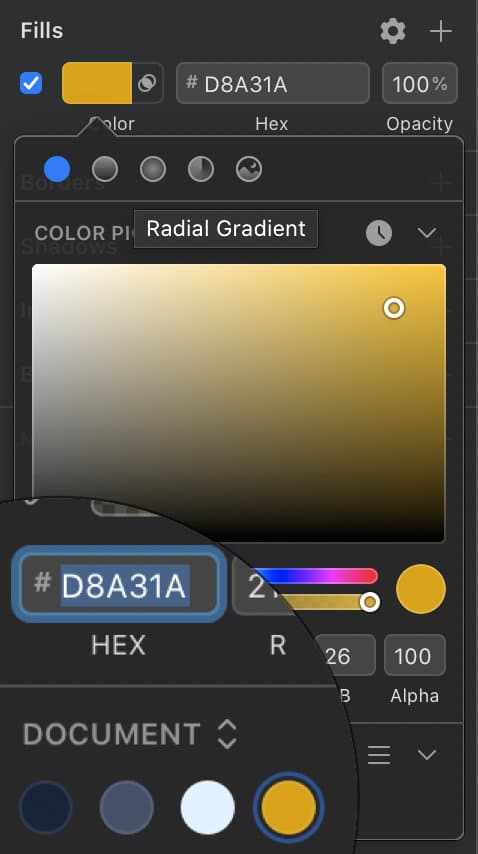

Consistent color palette

Zeplin automatically creates a color list of all the colors used in the Sketch document so it is very important to be consistent with the use of colors in Sketch.

Create your color palette, add them to the document, and make sure to always pick colors from that palette.

Create colors

Use Text Styles

It allows you to store a set of styles and reuse them in different text layers within your designs and thus maintain consistency in your UI, more information on how to use it in the Sketch documentation.

Create Text Styles

You can use any name in your ** Text Styles ** I personally separate them by where I use them, for example:

  • Form / Label
  • Button / Primary / Label o Button / Secondary / Label
  • Typography / H1
  • Typography / Body

Consistent space

In my case, I like to use 8px as a base, which means, all the space (margins and paddings) between the elements in my UI is based on multiples of 8 (8, 16, 24, 32, 40, 48 and so on).

Using an even number like 8 in space and size elements in your design makes scaling for a wide variety of devices much easier and more consistent. If you want to know more about this technique, I recommend this post: How to create stronger layouts with the 8pt Grid.

Use Symbols

The symbols in Sketch is a way to save and reuse common elements in your designs and I consider it to be the most powerful tool in Sketch, all the information about symbols can be found in Sketch’s documentation.

Create Symbols

Make the assets exportable

By doing this you will allow developers to download assets from Zeplin and even in different resolutions such as 1x, 2x and 3x:

Make the assets exportable

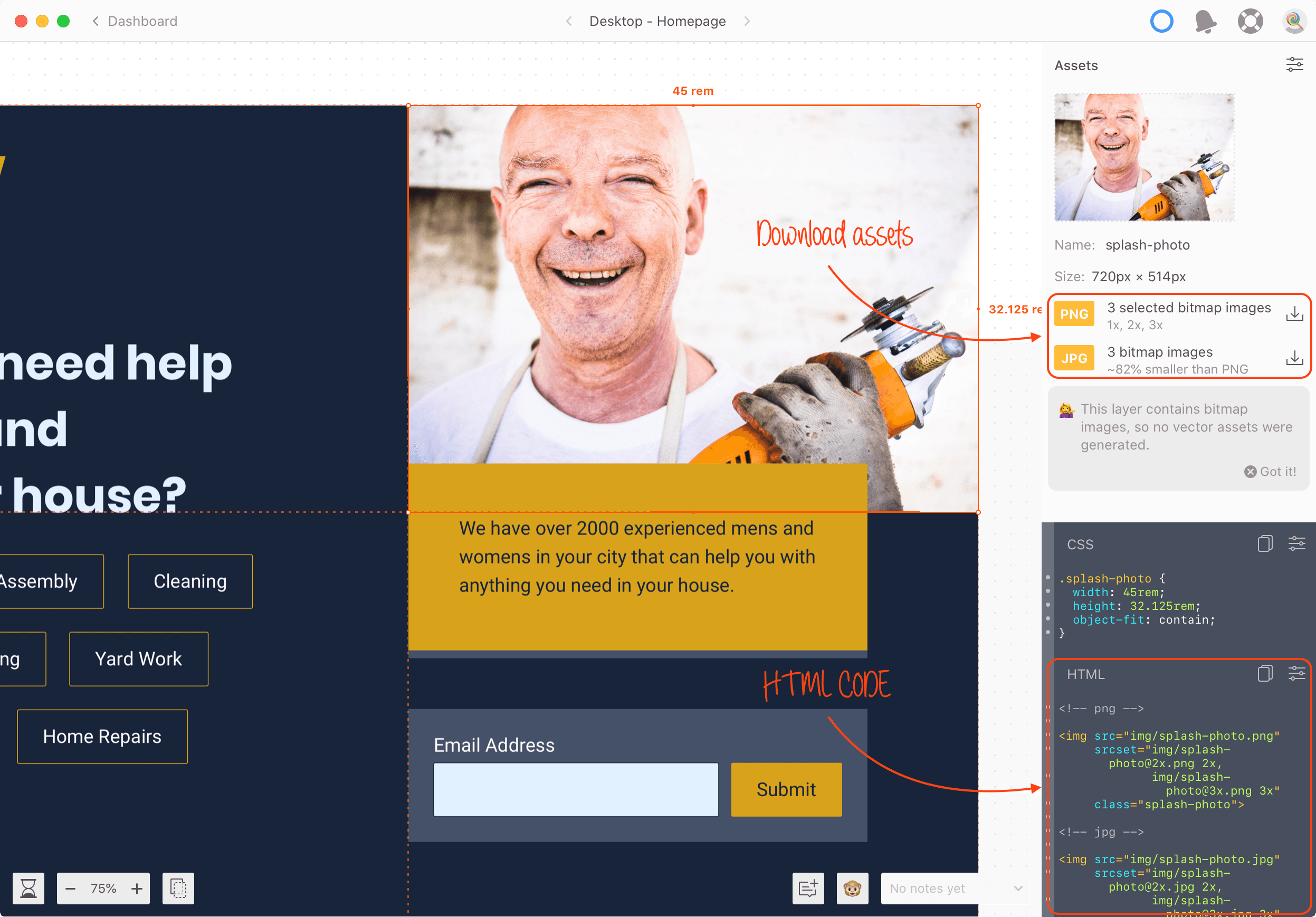

Then in Zeplin the developer will be able not only to inspect the image but also to download the png or jpg files for 1x, 2x and 3x and also HTML code for responsive image:

Download Assets

Setting up the project in Zeplin

Export from Sketch

Once you export all the artboards and pages from ** Sketch **:

Plugins > Zeplin > Export All > Artboards from all pages

and then go to yout Symbol page, select all of them and

Plugins > Zeplin > Export Selected

With this you make sure to export absolutely the entire Sketch document to Zeplin.

Adding and organizing content to Zeplin

Now if you open your project in Zeplin you will see that in the “Styleguide” tab there is an indicator, that means that Zeplin found colors and text styles to add to your project.

Color Palette

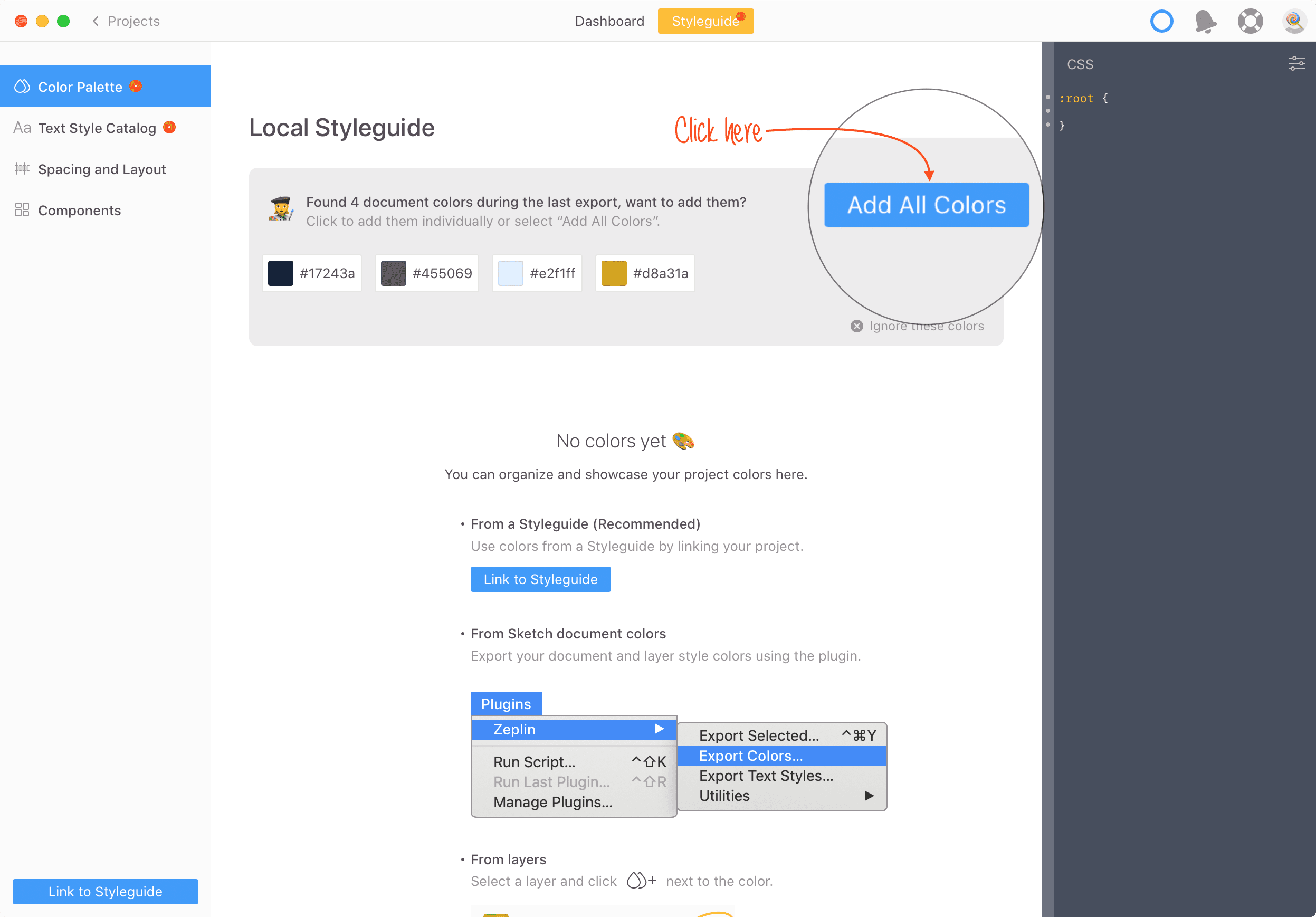

With a single click you add all the colors that Zeplin found in your document:

Add all colors

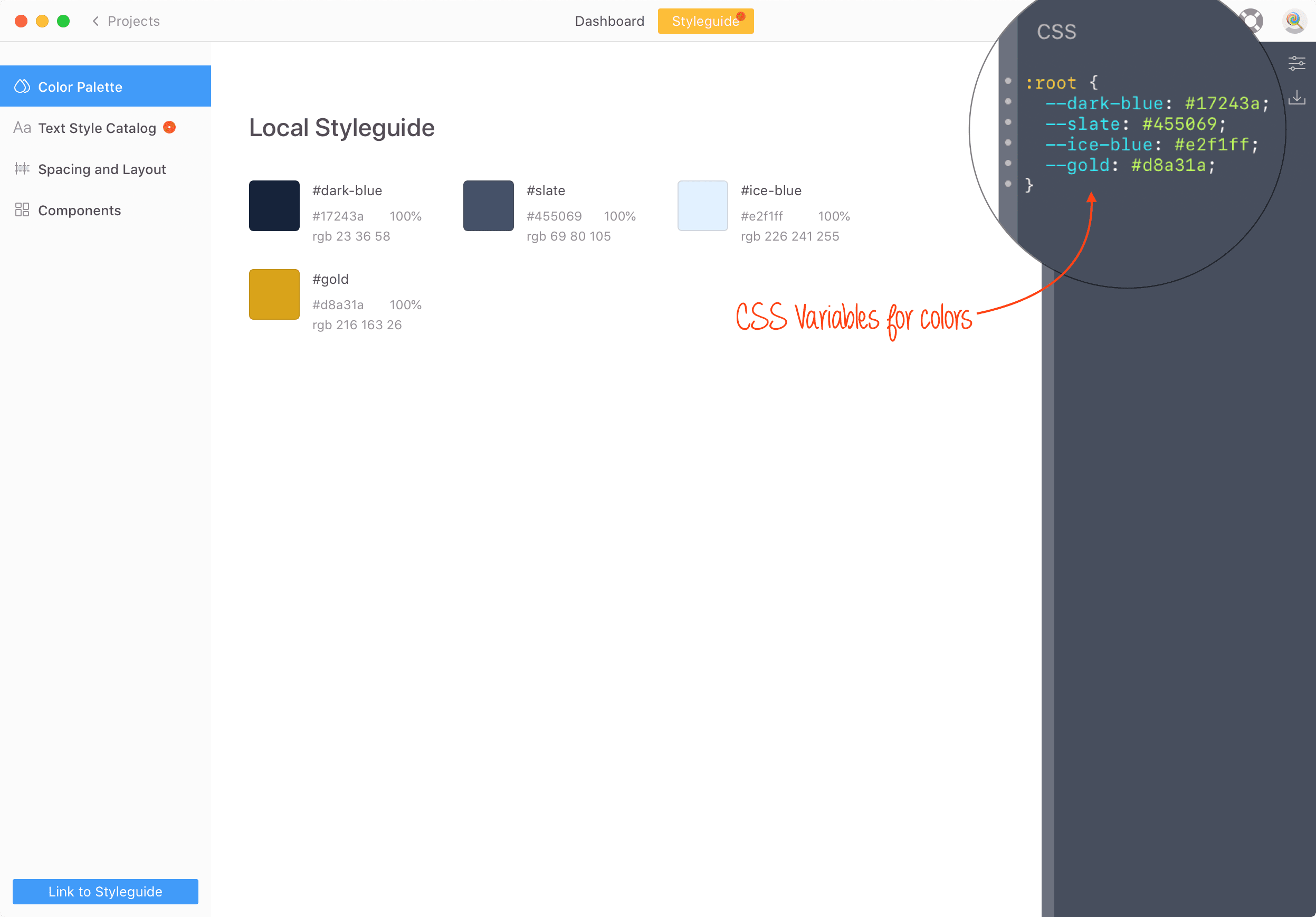

And it not only adds the colors, it also generates the necessary CSS code, so the developer only has to copy and paste the code in his project:

CSS Colors

You can also change the names and the order of the colors if you wish.

Text Style Catalog

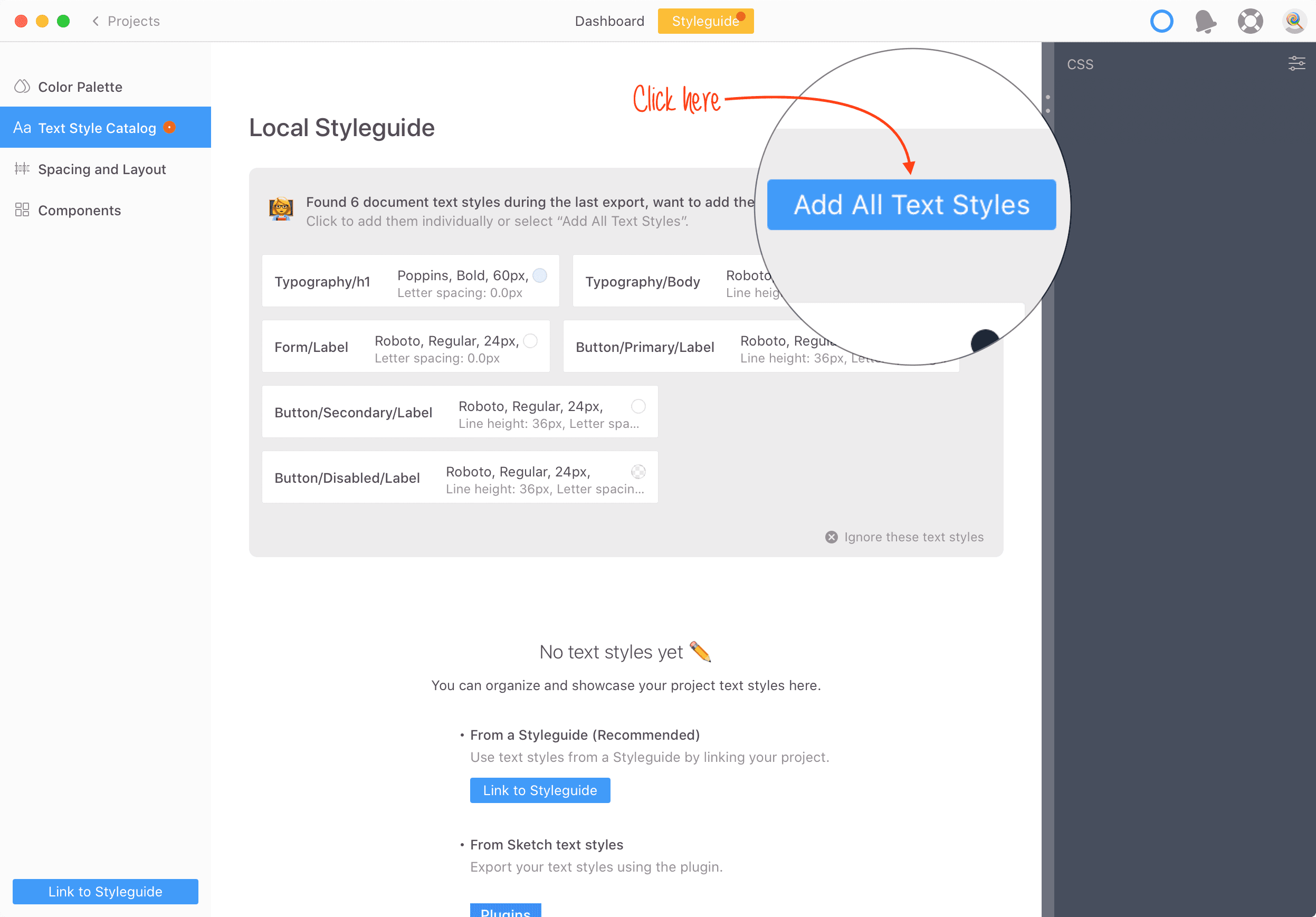

As with colors, Zeplin detects the ** Text Styles ** that your Sketch document has and suggests adding them with a single click:

Text Style Catalog

As with colors, it generates the CSS code so that developers only have to copy and paste:

CSS for the Styles

By default it uses the names that come from Sketch but you can change them if you wish.

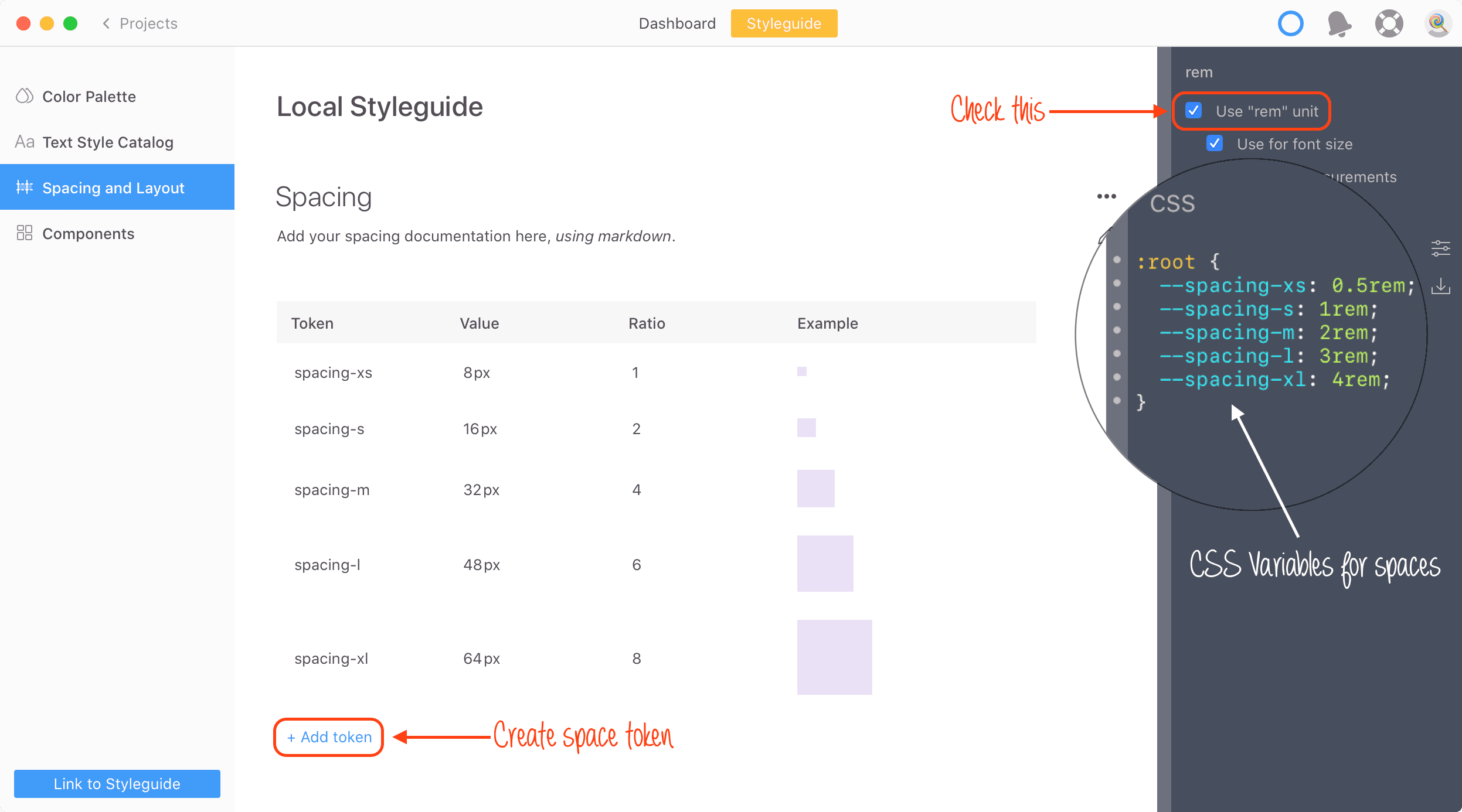

Spacing and Layout

In this section you can create “tokens” with the spaces that you use in your design. Since my design uses spaces of multiples of 8px I must create: 8, 16, 24, 32 and so on and I make sure to mark the checkbox to use measures rem:

Spacing and Layout

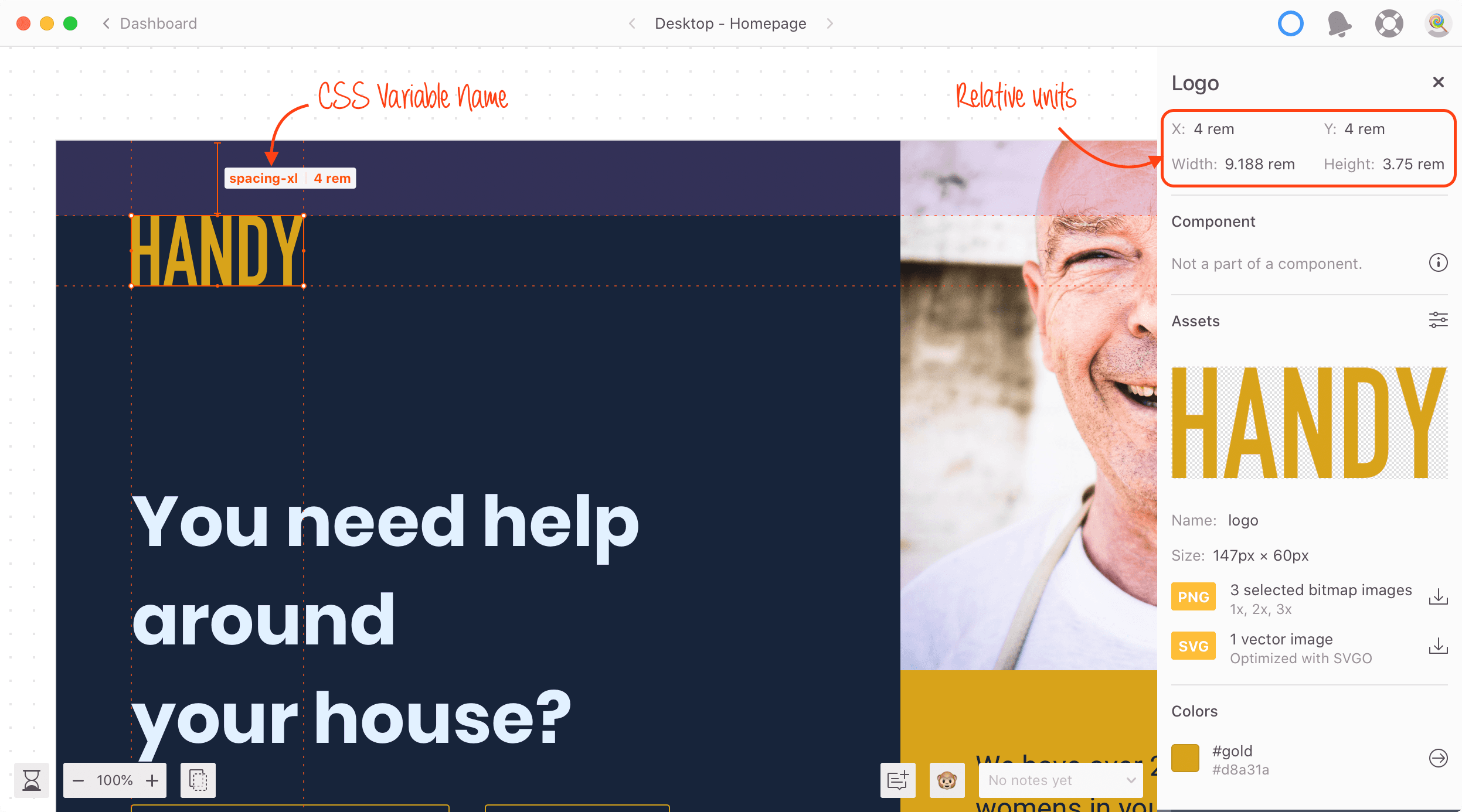

Using relative measures (rems) not only generates the CSS code with those measures, but when the developer is inspecting the design, he can see the name of the generated CSS variables, which will allow him to develop the page and the responsive and accessible components:

Using relative measures (rems)

Components

In this section the developer will be able to see all the Symbols that you created in your design in Sketch which serves as a guide for the reusable components that the developer needs to create and as a bonus CSS code with the color and space variables:

Zeplin Components Library

By default they are all grouped in the same section but you can group them by section, select multiple components and then: Right click> New Section From Selection

Create components sections

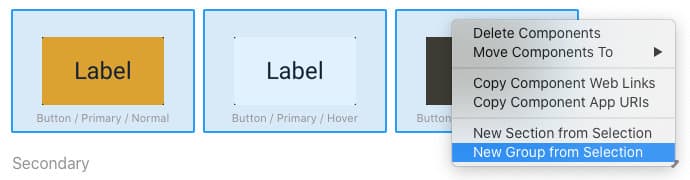

You can also organize it by groups, select multiple components in a section Right Click> New Group from Selection

Create components groups

And you can also drag and drop components, groups and sections to organize better. By doing this you can have a list of components organized by Sections and Groups that are automatically updated from Sketch.

Zeplin ordered library

Sharing

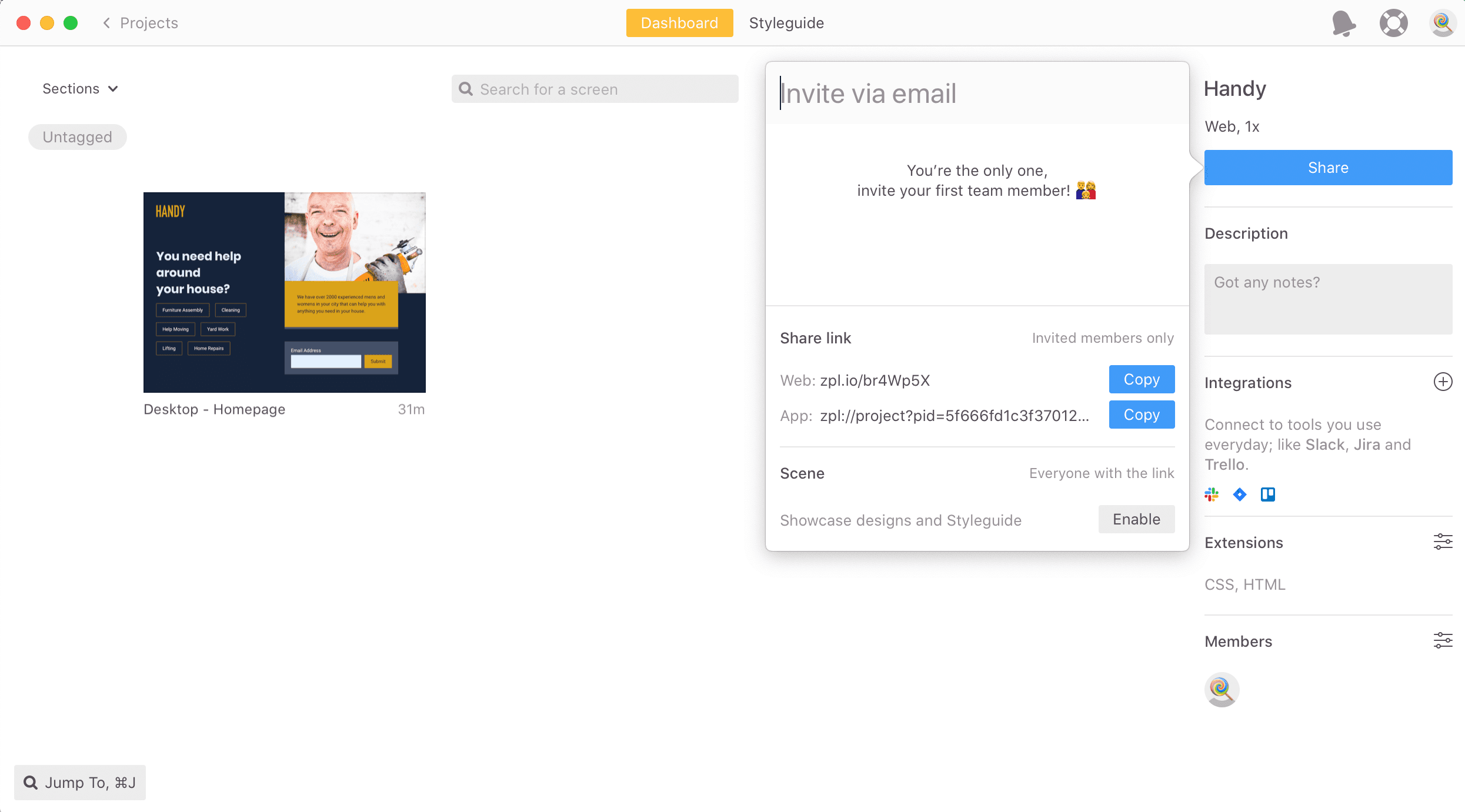

Everything is ready to send it to your developer or development team. In Zeplin’s project dashboard you just click on the “Share” button:

Zeplin sharing window

In the popup you can invite the developers by email (the email with which they registered in Zeplin) or you can send them the link for both the web and the app, both links are private and can only be seen by people who are invited to the project.

Finally, Zeplin has the concept of “Scene” which is a public page where you can share your design with everyone, this is 100% public but you only activate it if you wish, here is the link of this project: https://scene.zeplin.io/project/5f663baa271b6a1b54aba890

Conclusion

As you could see, Sketch and Zeplin allows you to pass in an orderly way and always in sync handoff the designs to the developers, including colors, fonts, sizes, spaces, etc.

There are still more things that can be done with Zeplin, the developer can link the code of its components, its repository, snippets and even StoryBook with the Zeplin project, in the next post I will do that process.

Questions?

If you liked this post help me by sharing it and if you have any questions you can write to me on Twitter at @fmontes.
